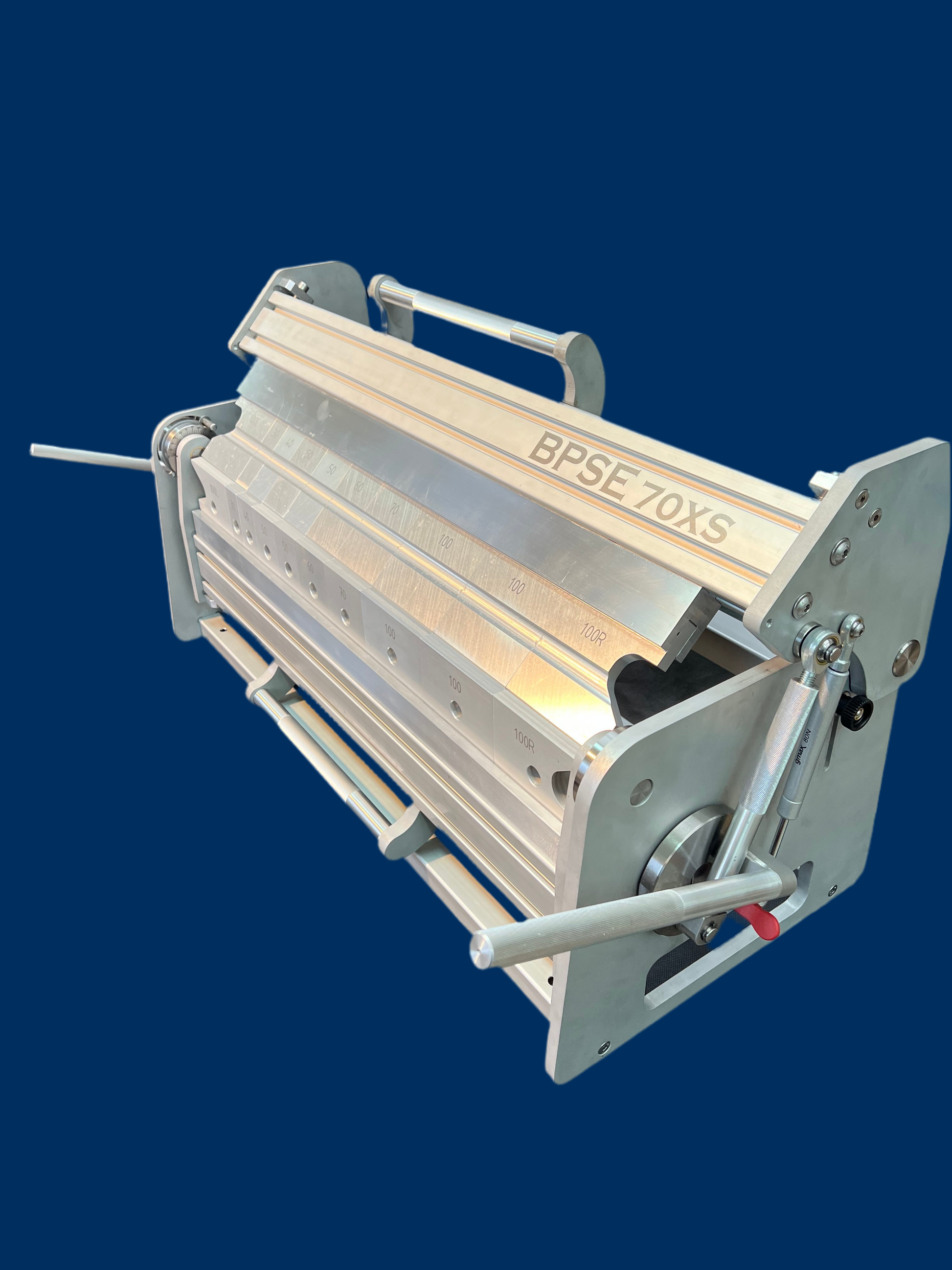

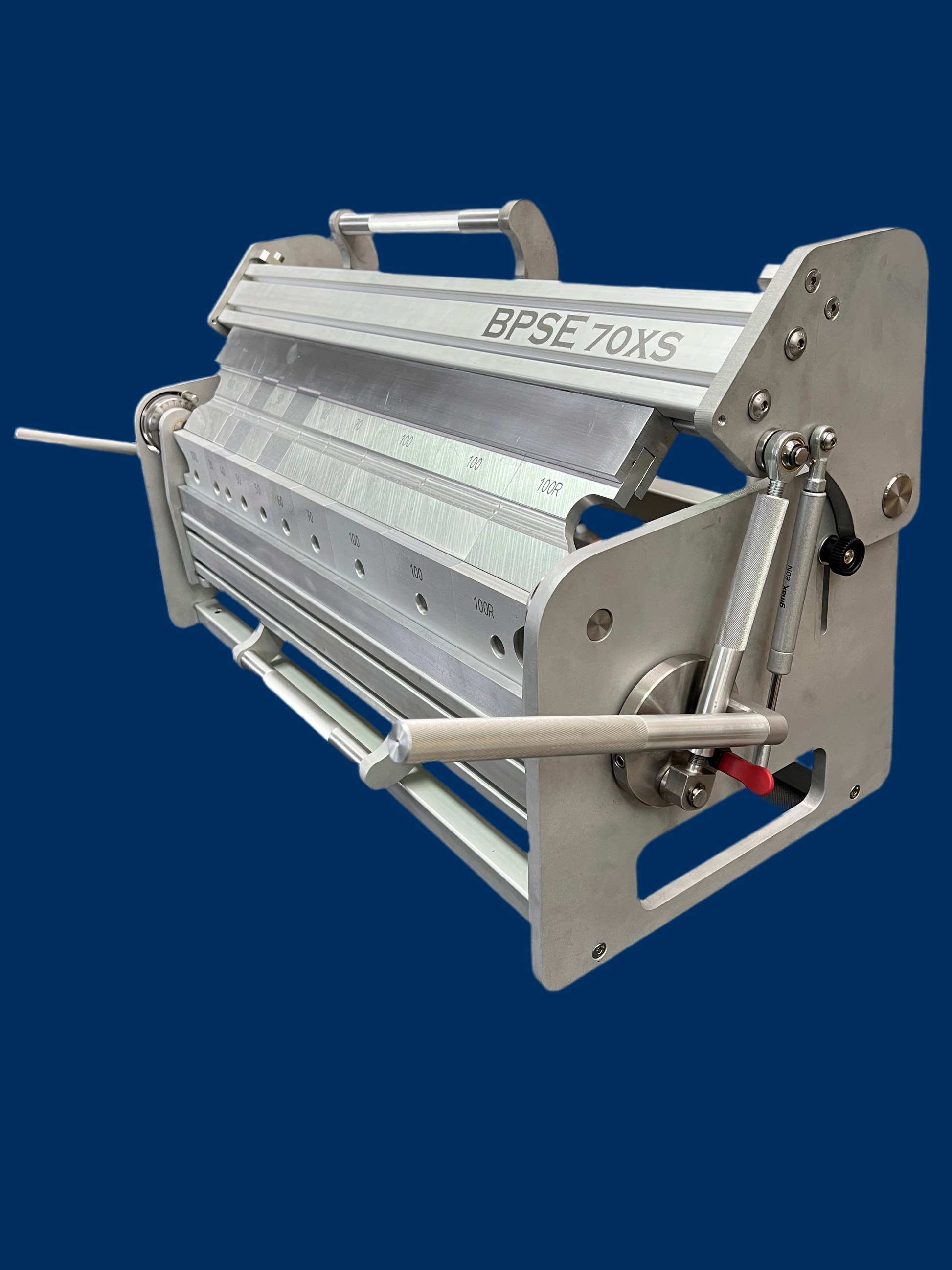

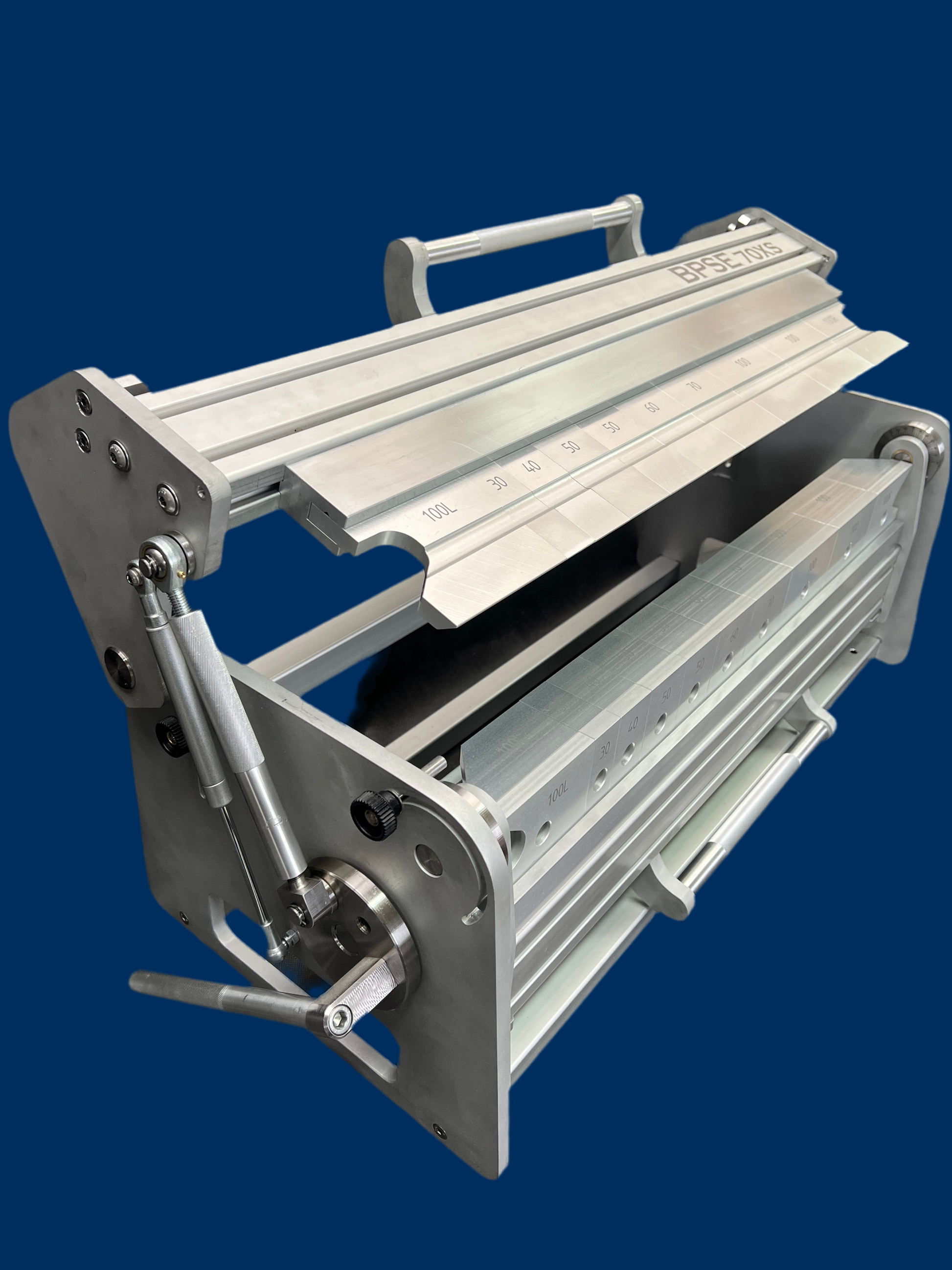

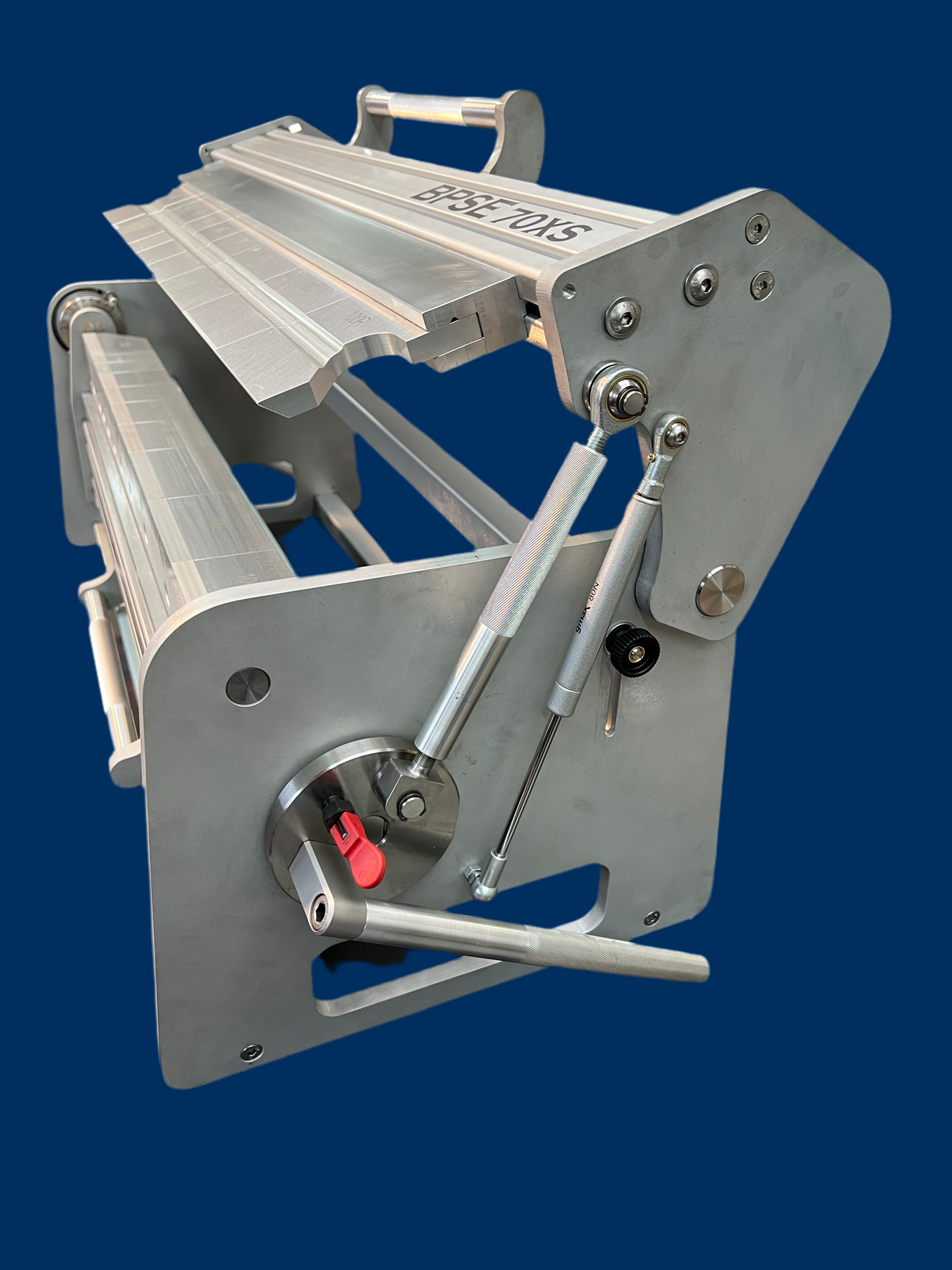

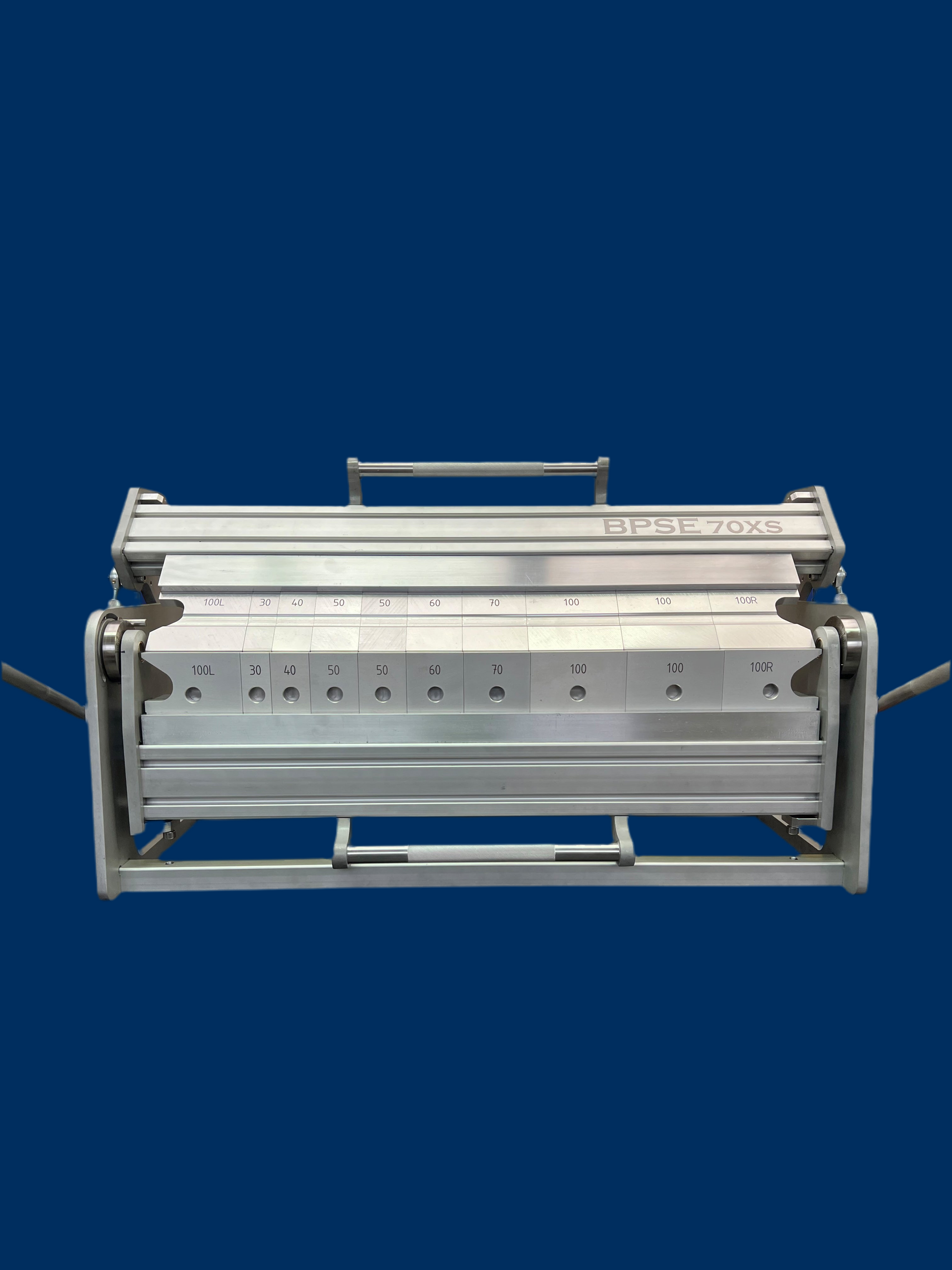

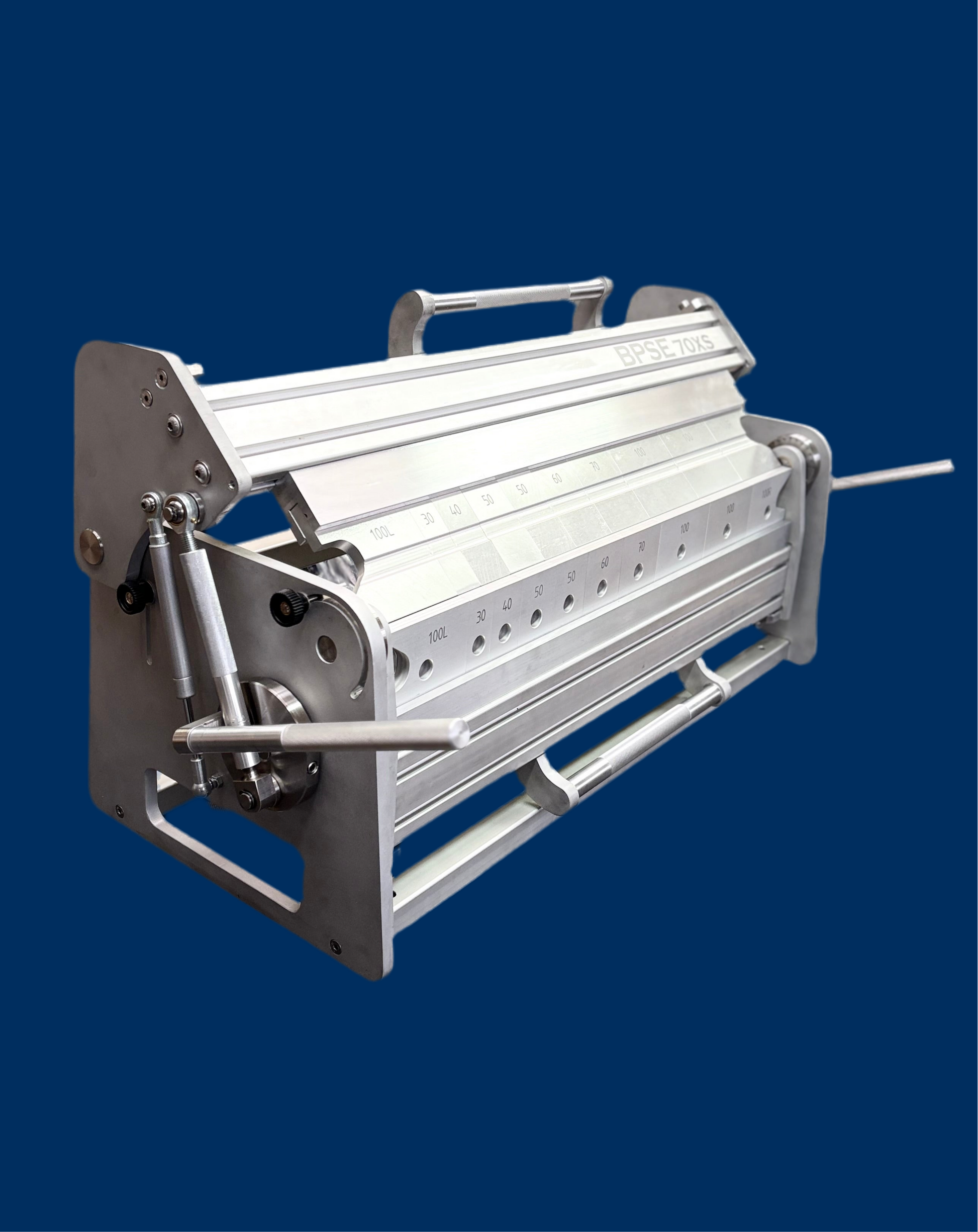

BPSE-70XS (Pre-Order!)

Smart Functions:

- Built-in Back Support with changeable height

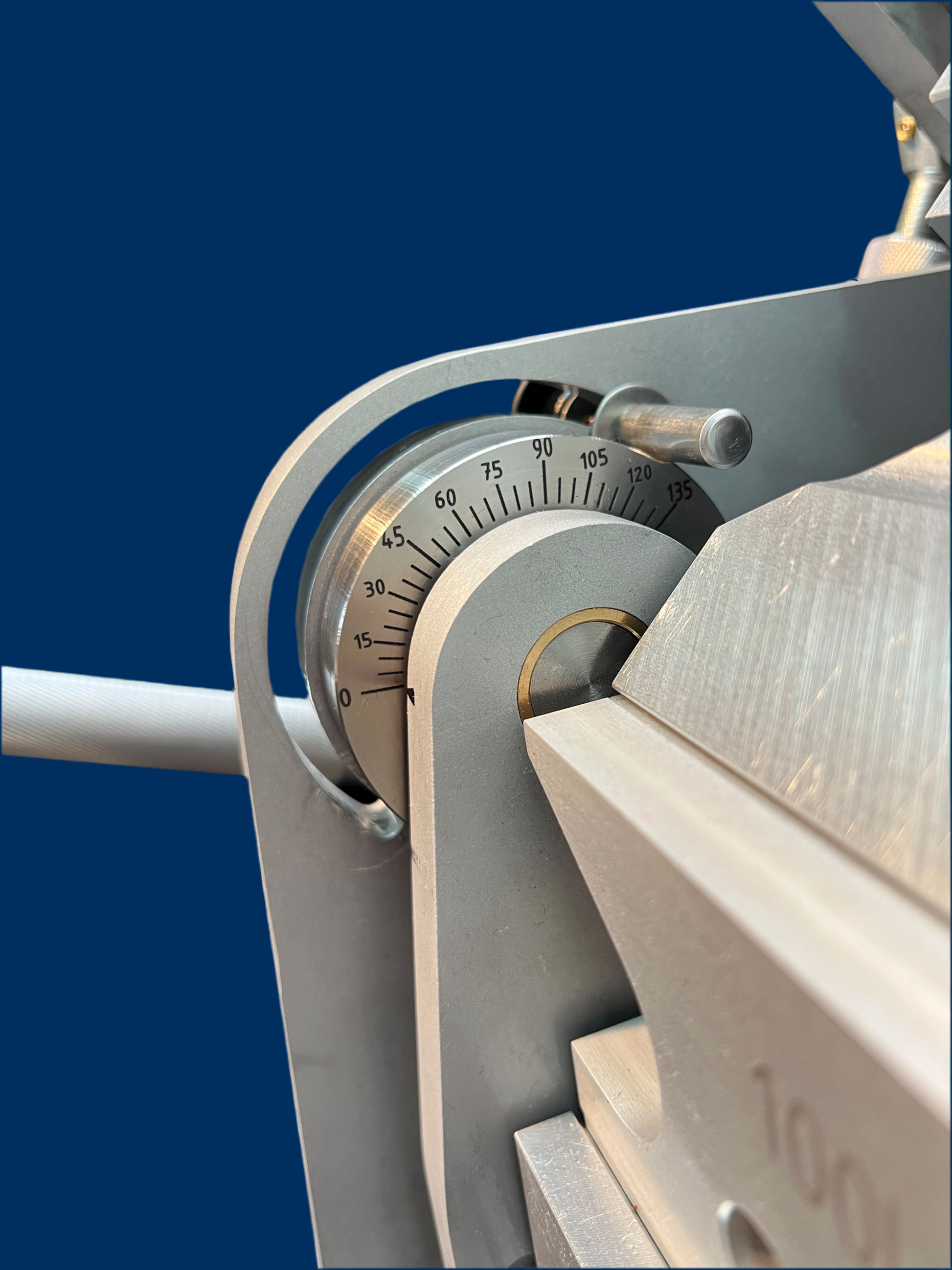

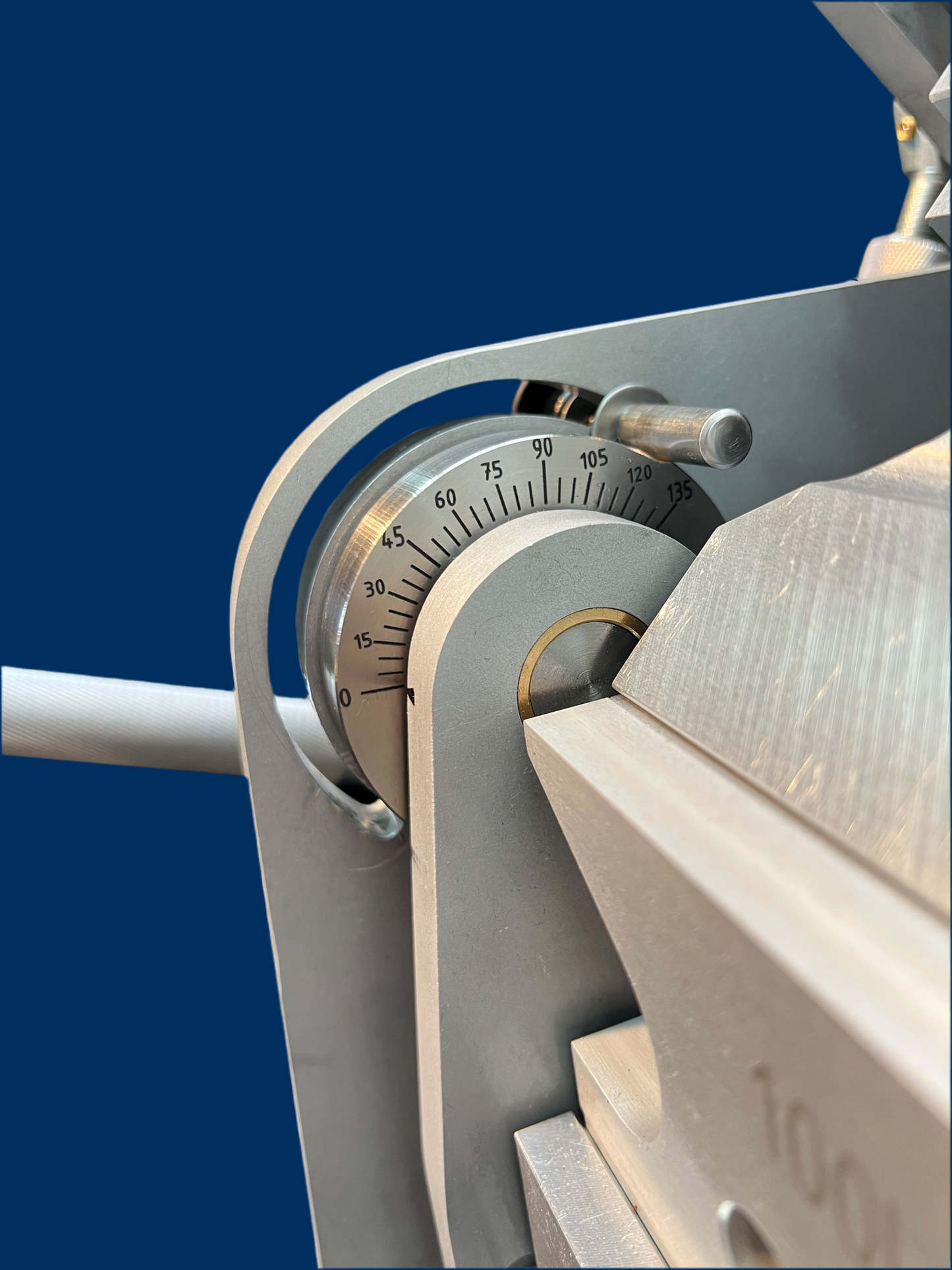

- Degree stop for serial production

- Locking points available for closing the bending arms

- Fast attachment system for both segments

Specifications:

- Dimensions: 985x470x420mm

- Weight: 30.5kg (36kg with segment beads)

- Working length: 700mm

- Upper beams height: 45mm

- Lower beams depth: 60mm

- Segments length: 1x30mm, 1x40mm, 2x 50mm, 1x60mm, 1x70mm, 2 x100mm, 2x100mm corner segments

- Opening height: 108mm

- Thickness capacity:

• Steel: 1.0mm
• Aluminium 1.2mm
• Copper, Zink: 1.0mm
• Stainless steel 0.6mm

- Thickness tuning up and down

- Gas springs supported movements

- Several fixing points for securing the machine



For more info and inquiry by email: biroprofil@gmail.com
