BPSE-100S

BPSE-100S

Get a Quote!

Details:

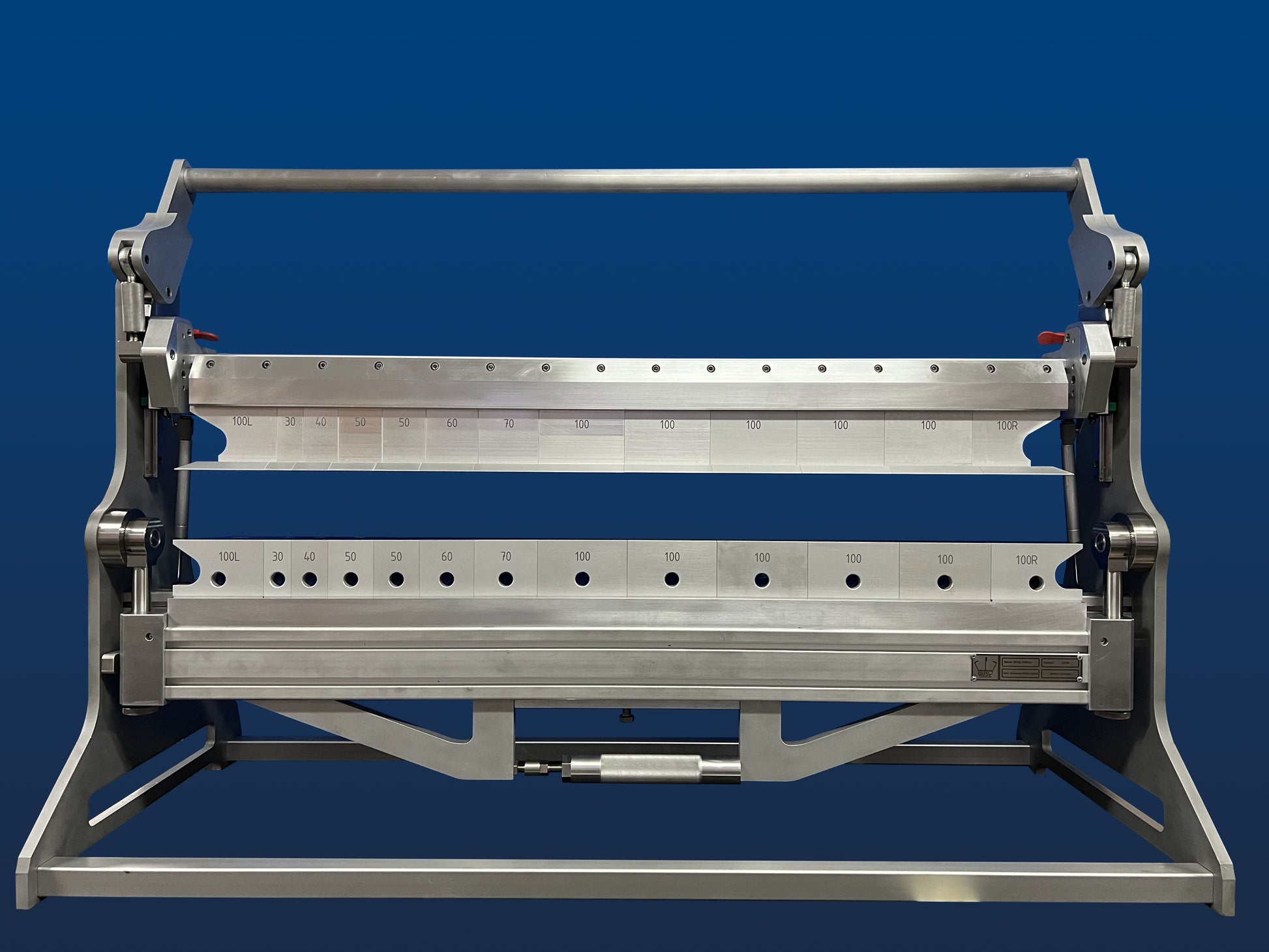

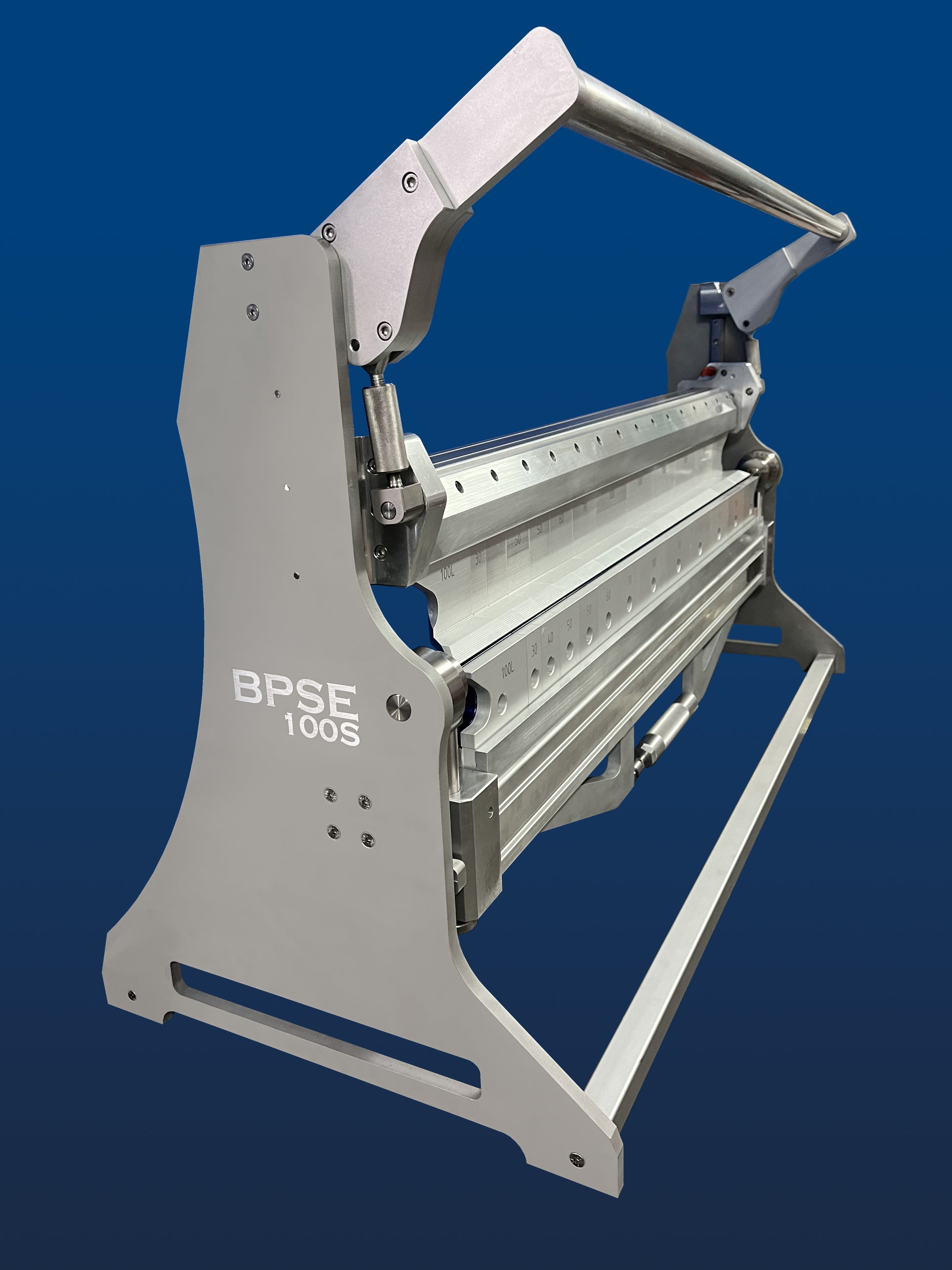

Fully segmented sheet-metal bending machine, made from high quality materials. 90% hard alloyed aluminium parts are used to make the machine as light as possible.

- Easy to handle
- Fast clamping segments come in a storage box
- Fast Mounting
- Easy transportation even for one person
- Efficient workflow on building sites or workshops
- Lightweight, the bending arm can also be dismounted to spare more weight
- Upper and lower segments are anodized
- The machine can be mounted on a table by its weight, additional fixing points available on the bottom



Technical data:
- Bendable plate thickness: 0.6mm (steel) 0.8mm (copper,zinc),0.8mm (aluminum), 0.5mm (stainless)
- Useful working length: 1000mm
- Upper segment beads angle: 150°
- Upper segment beads height: 73mm
- Lower segment beads height: 60mm
- Opening height (max): 73mm
- Size (length, width, height): 1165x500x685mm
- Weight (without segments): ~44kg
- Weight of segments (without box): ~11kg

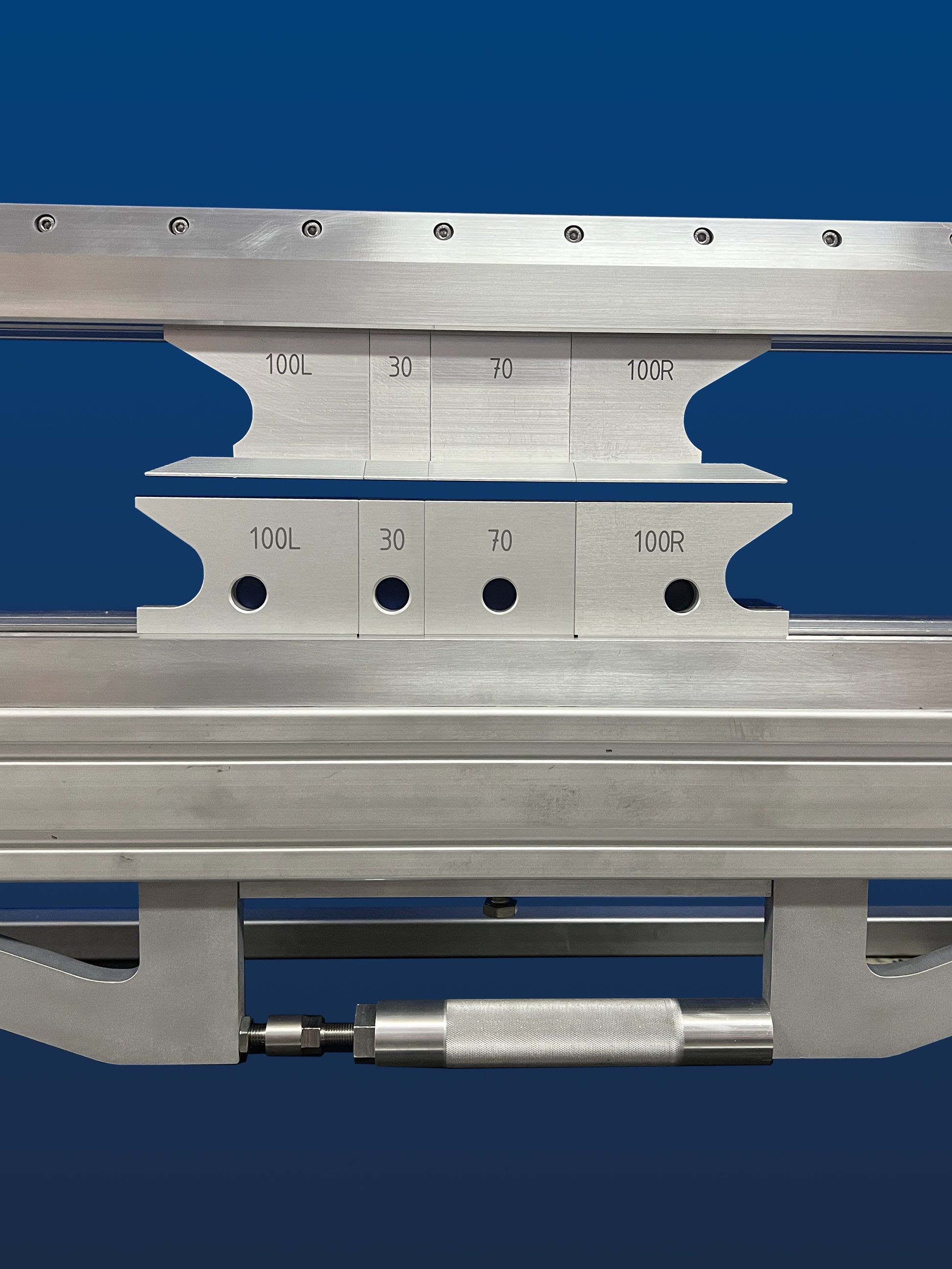

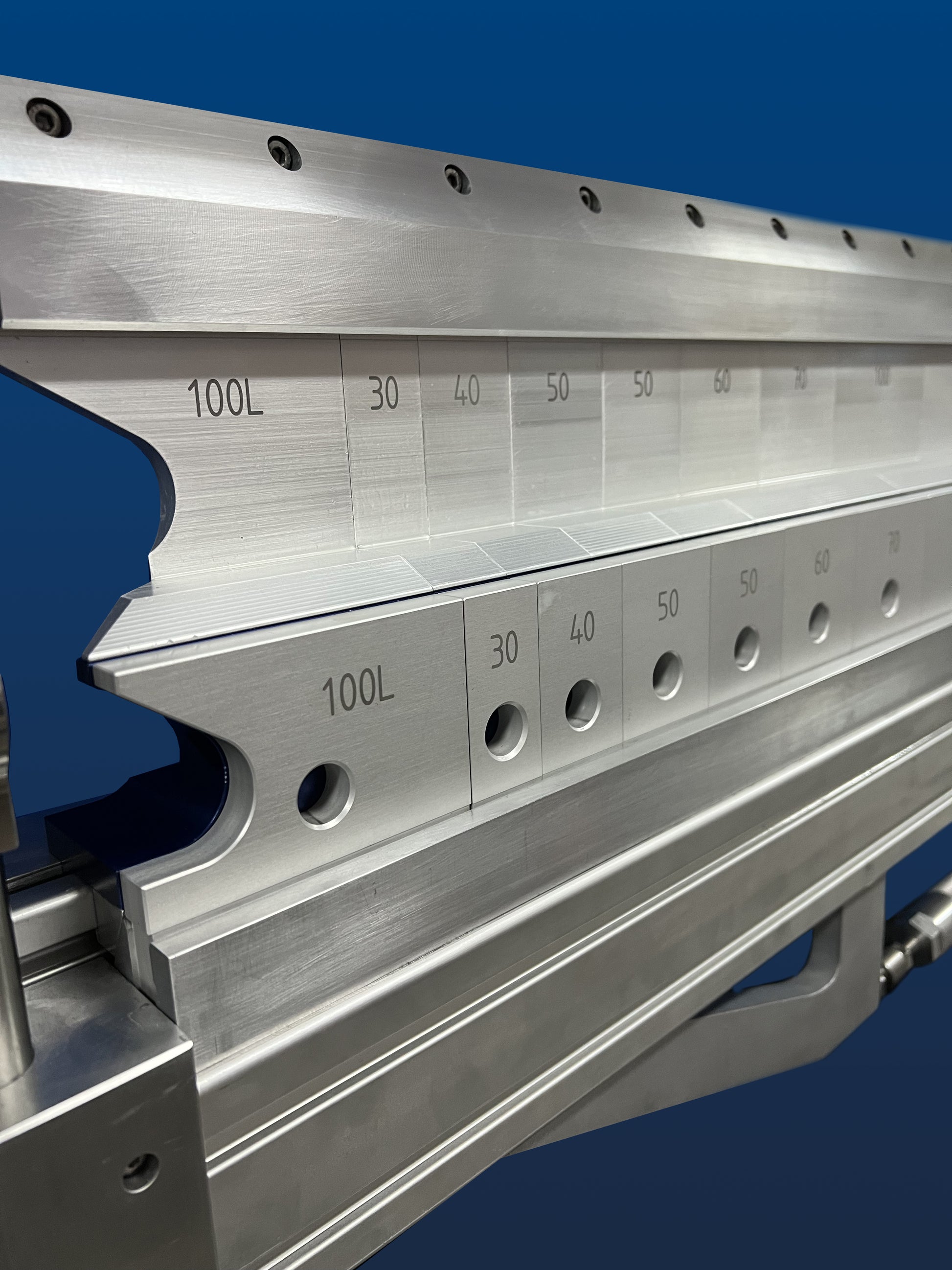

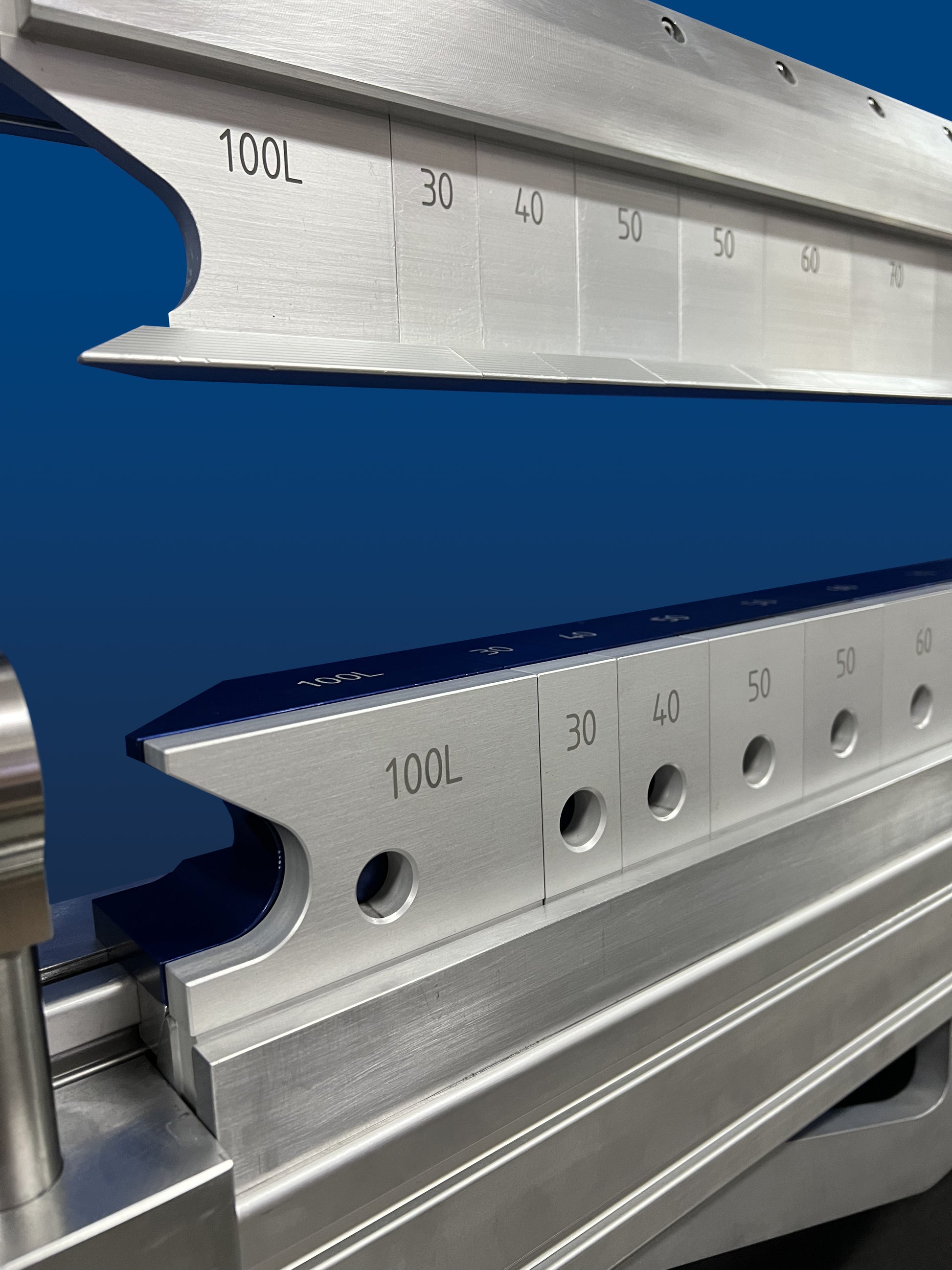

- Dimensions of segments (Bottom, top, rear):1x30mm 1x40mm 2x50mm 1x60mm 1x70mm 5x100mm 1xL100mm 1xR100mm



Ask for inquiry and lead time.
